air conditioning panel rear right V2 Non-original parts – suitable for VW T4 VW T4

This component is an air conditioning panel, Non-original parts – suitable for VW T4 . The component is made of 1 mm thick steel sheet and is intended for vehicles from the model years 1991 to 2003. It is located behind the luggage compartment trim on the right-hand side. The design of the air conditioning panel includes tabs that allow installation without disconnecting the air conditioning lines. Replacement is carried out as part of repair and maintenance work; fastening can be done by tack welding. Reference number (for comparison only): 7D1 801 570 A

This component is the forced ventilation panel, Non-original parts – suitable for VW T4 The component is made of 1.5 mm galvanized steel sheet and is designed in the form of a repair panel. Relevant cut-outs and mounting holes for the bumper attachment are provided. The forced ventilation panel is intended for use in repair and maintenance work. Available for: left and right side Material: 1.5 mm galvanized steel sheet Comparison number (for comparison only): 701 809 171 D

This component is the forced ventilation panel, Non-original parts – suitable for VW T4 The component is made of 1.5 mm galvanized steel sheet and is designed in the form of a repair panel. Relevant cut-outs and mounting holes for the bumper attachment are provided. The forced ventilation panel is intended for use in repair and maintenance work. Available for: left and right side Material: 1.5 mm galvanized steel sheet Comparison number (for comparison only): 701 809 171 D

This component is a spring mount , Non-original parts – suitable for VW T4 The repair panel for the spring mount is made of 2 × 3 mm steel sheet and is intended for repair and maintenance work. The complete spring mount including the spring seat consists of a 3 mm thick bent component with a welded 3 mm base plate as well as a round component for holding the bump stop. The bump stop is included in the scope of delivery. Before ordering, please check whether the vehicle is equipped with the spring mount with two angled sides, as highlighted in blue in the last product image. Reference numbers (for comparison only): 701 803 455 C / 701 803 456 B

This component is a spring mount , Non-original parts – suitable for VW T4 . The repair panel for the spring mount is made of 2 × 3 mm steel sheet and is intended for repair and maintenance work. The complete spring mount including the spring seat consists of a 3 mm thick bent component with a welded 3 mm base plate as well as a round component for holding the bump stop. The bump stop is included in the scope of delivery. Before ordering, please check whether the vehicle is equipped with the spring mount with two angled sides, as highlighted in blue in the last product image. Reference numbers (for comparison only): 701 803 455 C / 701 803 456 B

This component is a bumper bracket repair panel ,  Non-original parts – suitable for VW T4 The bumper bracket serves as a replacement part to replace a damaged or corroded bracket. The repair panel is intended for installation under the rear bumper on the driver’s side. The component is pre-bent and made of 1 mm thick steel sheet. It is intended for vehicles from the model years 1997–2003 and is suitable for repair and maintenance work. Replacing the damaged component can help restore the original mounting of the bumper. Actual fit and effectiveness may vary depending on the condition of the vehicle.

This component is a bumper bracket repair panel, Non-original parts – suitable for VW T4 . The bumper bracket serves as a replacement part to replace a damaged or corroded bracket. The repair panel is intended for installation under the rear bumper on the driver’s side. The component is pre-bent and made of 1 mm thick steel sheet. It is intended for vehicles from the model years 1997–2003 and is suitable for repair and maintenance work. Replacing the damaged component can help restore the original mounting of the bumper. Actual fit and effectiveness may vary depending on the condition of the vehicle.

This component is a cross member above the spare wheel, Non-original parts – suitable for VW T4 The component is made of automotive steel with a material thickness of 1.5 mm. The cross member is located centrally above the spare wheel. In this area, corrosion damage can occur over time, which is why the cross member is often replaced as part of repair and maintenance work. Comparison number (for comparison only): 7D1 803 533 B

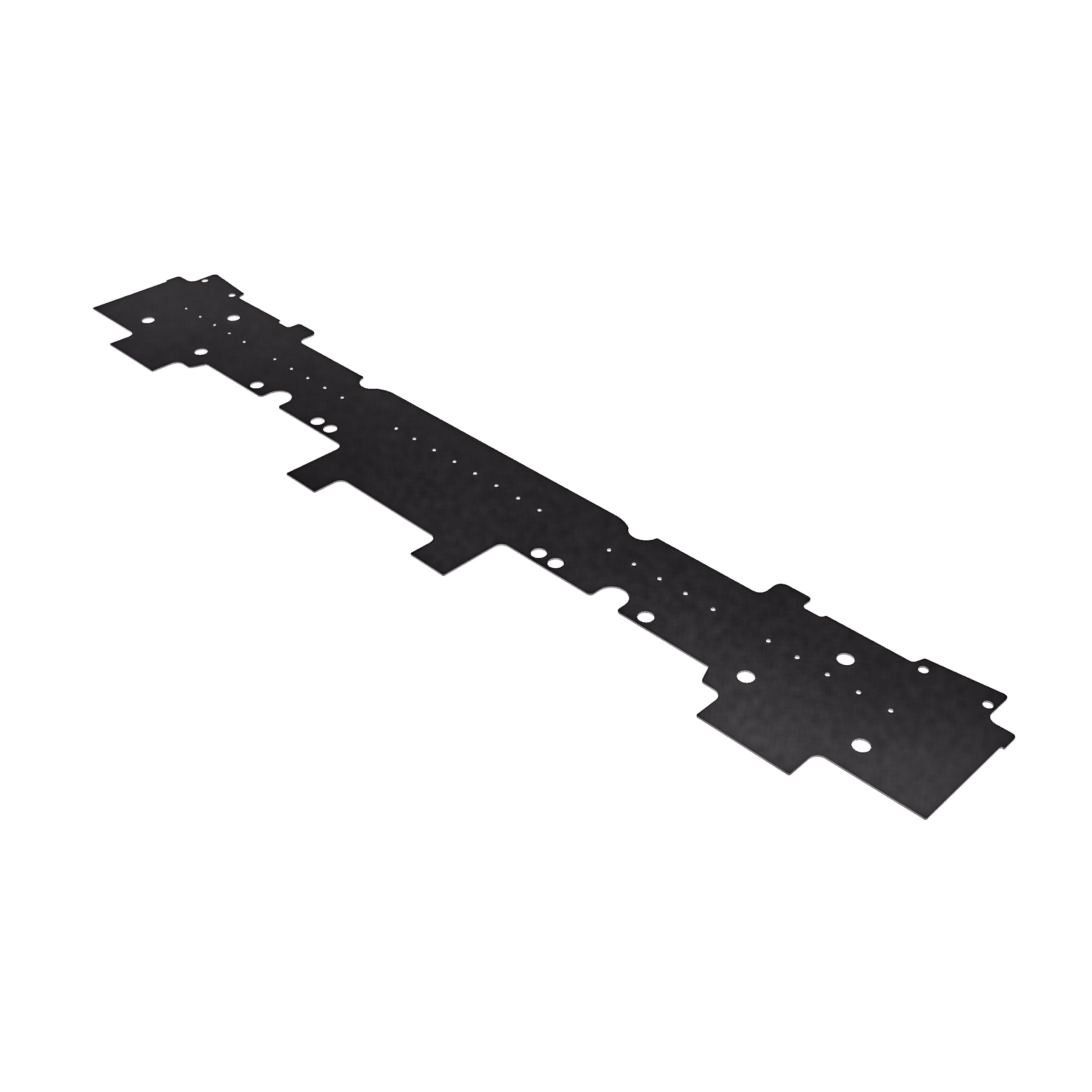

This component is a closing panel for the cross member, Non-original parts – suitable for VW T4 The closing panel is intended for repair and maintenance work and includes the required cut-outs for welding operations. Note: The repair panel is shipped as bulky goods. Reference number (for comparison only): 701 804 775

This component consists of reinforcement panels version 2, Non-original parts – suitable for VW T4 The curved design is intended for use in the area of the shock absorber mount on the rear axle and serves as a repair panel. The reinforcement panels are provided with a thin zinc coating. After installation, it is recommended to additionally coat the reinforcement panels, for example with a suitable primer followed by stone chip protection. Notes on the variants: There are two different versions of the reinforcement panels available. Before ordering, please check whether the stiffening of version 2 corresponds to the version shown in the product image. Version 1 with straight stiffening is also available in the shop.

This component consists of reinforcement panels version 1, Non-original parts – suitable for VW T4 The curved design is intended for use in the area of the shock absorber mount on the rear axle and serves as a repair panel. The reinforcement panels are provided with a thin zinc coating. After installation, it is recommended to additionally coat the reinforcement panels, for example with a suitable primer followed by stone chip protection. Notes on the variants: There are two different versions of the reinforcement panels available. Before ordering, please check whether the stiffening of version 2 corresponds to the version shown in the product image. Version 2 with round stiffening is also available in the shop.
